Selsútrichtende kogellager D 150-1100mm
Koarte beskriuwing:
WOLKOM BY DEMY BEARING, WOLKOM OM ÚS FABRYK TE BESYKJEN

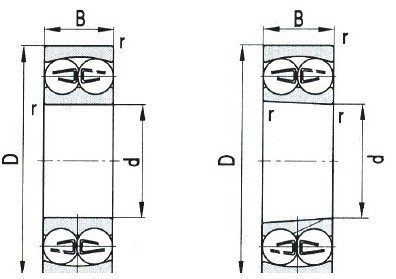

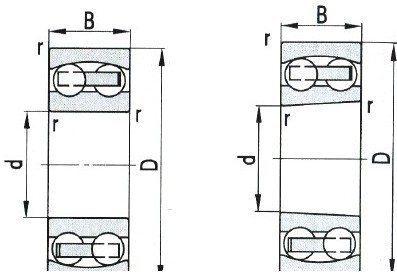

| Grinsôfmjittings mm | Basis ladingbeoardieling KN | Snelheidswurdearring r/min | Lagernûmers | Montageôfmjittings mm | Aksiale ladingfaktoaren | Gewicht | ||||||||||
| d | D | B | rsmin | Cr | Kor | Fet | Oalje | Silindryske boring | Ds(min) | dh(maks) | R(maks) | e | Y1 | Y2 | Y0 | Silindryske boring |
| 150 | 235 | 36 | 3 | 104 | 53.0 | 2000 | 2600 | 1730 | 163 | 222 | 2 | 0.15 | 4.18 | 6.46 | 4.38 | 6.25 |
| 680 | 900 | 300 | 6 | 360 | 370 | 300 | 350 | 150/680D1L | 703 | 877 | 5.5 | 0.26 | 2.38 | 3.69 | 2.5 | 447 |
| 1100 | 1300 | 300 | 6 | 910 | 440 | 130 | 160 | 150/1100D1L | 1123 | 1277 | 5.5 | 0.21 | 2.99 | 4.62 | 3.13 | 614 |
