Introduction
Choosing ball bearings for industrial equipment involves more than matching shaft size and part number. Load direction, speed, operating temperature, contamination, lubrication method, and required service life all influence whether a bearing will deliver reliable performance or become an early failure point. This article outlines the key selection criteria engineers and maintenance teams should evaluate, including how application conditions affect bearing type, internal clearance, material, sealing, and precision needs. By the end, readers will have a practical framework for specifying ball bearings that support uptime, control maintenance costs, and fit the demands of real operating environments.
How to Approach Ball Bearing Selection
Selecting the optimal ball bearing for industrial applications demands a rigorous engineering approach rather than simple catalog matching. The total cost of ownership (TCO) for an industrial bearing often exceeds its initial purchase price by a factor of five to ten when factoring in installation labor, ongoing lubrication schedules, and energy consumption.
A structured evaluation ensures that the chosen components align with exact systemic requirements, maximizing asset availability and preventing catastrophic machinery failures.
Why selection affects uptime and maintenance cost
Uptime is the primary metric for industrial profitability. In continuous process industries, unplanned downtime can incur costs ranging from $10,000 to over $100,000 per hour. Premature bearing failure—often stemming from improper initial selection regarding load capacities or speed limits—directly triggers these costly outages.
Furthermore, maintenance labor accounts for a significant portion of operational expenditure. Selecting a bearing with an optimized service life reduces the frequency of manual interventions, thereby driving down aggregate maintenance costs and mitigating the risk of human error during complex replacement procedures.
Which operating conditions define requirements
Defining the operational envelope is the foundational step in bearing specification. Engineers must quantify the exact operating conditions, including shaft speeds, continuous load profiles, and ambient temperatures, which frequently range from -40°C in cryogenic applications to over 200°C in high-temperature industrial furnaces.
Transient conditions, such as shock loads during motor startup or sudden thermal gradients, must also be mapped accurately. By establishing a precise matrix of these operational variables, specifiers can set the baseline requirements for dynamic load capacity, thermal expansion allowances, and minimum lubrication viscosity limits.

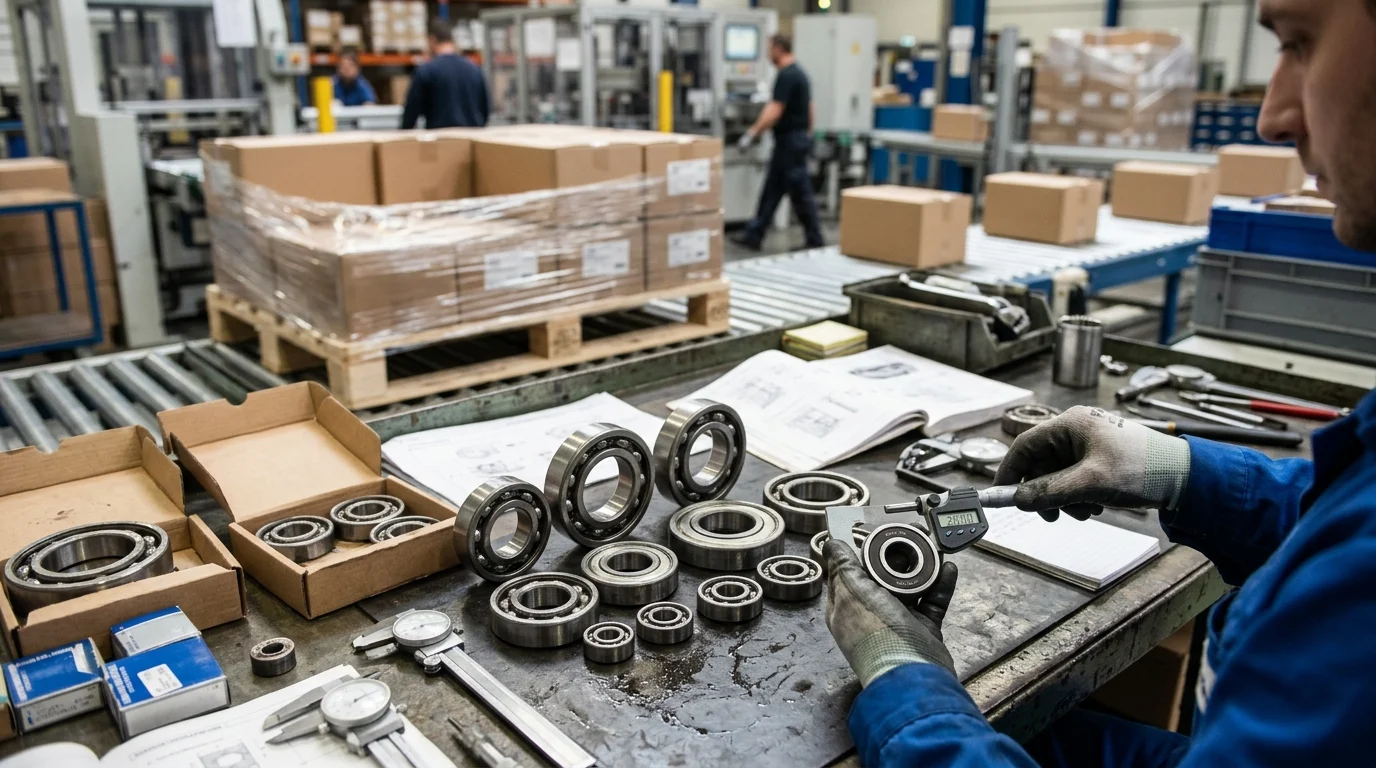

Which Ball Bearing Specifications Matter Most
Once the operational parameters are established, the focus shifts to the specific mechanical and material specifications of the ball bearings. Navigating these specifications requires balancing precision, durability, and cost to ensure the component meets exact systemic demands without unnecessary over-engineering.
How load, speed, misalignment, and duty cycle affect choice
The interplay between load, speed, misalignment, and duty cycle dictates the core geometry of the required bearing. Dynamic load ratings (C) and static load ratings (C0) determine the bearing’s capacity to withstand forces without experiencing permanent plastic deformation, typically defined at a strict threshold of 0.0001 times the rolling element diameter.
High-speed applications, often characterized by Ndm values (bore diameter in mm multiplied by speed in RPM) exceeding 1,000,000, necessitate specialized internal geometries and lightweight cages to minimize destructive centrifugal forces. Furthermore, the expected duty cycle—whether continuous, intermittent, or rapidly oscillating—heavily influences fatigue life expectations and the required robustness of the bearing design.
Which material, cage, seal, lubrication, clearance, and toleranc
e matter
Material science and internal configurations are critical differentiators in bearing selection. Standard industrial bearings utilize SAE 52100 chrome steel, offering excellent fatigue resistance, while 440C stainless steel is deployed for corrosive environments. Internal clearance, denoted by classes such as C2, CN (Normal), C3, and C4, must be selected to accommodate thermal expansion; a C3 clearance is frequently mandated for electric motors operating above 90°C.
Lubrication selection—ranging from synthetic polyurea greases to automated oil mist systems—and sealing mechanisms dictate the bearing’s defense against tribological wear. Non-contact ZZ shields provide low friction for high speeds, whereas 2RS contact seals offer superior protection against heavy particulate ingress at the cost of increased heat generation.
How deep groove, angular contact, and self-aligning bearings com
pare
| Bearing Type | Primary Load Capacity | Axial Load Capacity | Max Misalignment Tolerance |
|---|---|---|---|
| Deep Groove | Excellent (Radial) | Moderate (Both Directions) | ~2 to 10 arc minutes |
| Angular Contact | High (Radial) | High (Unidirectional) | ~2 arc minutes |
| Self-Aligning | Moderate (Radial) | Low | Up to 3 degrees |
Deep groove ball bearings remain the industry standard due to their versatility in handling combined radial and moderate axial loads at high speeds. Angular contact bearings are engineered with asymmetric races, typically featuring contact angles of 15°, 25°, or 40°, making them indispensable for precision spindles where high unidirectional thrust loads are present.
Conversely, self-aligning ball bearings utilize a spherical outer raceway. This unique internal geometry allows them to tolerate significant shaft deflections or mounting inaccuracies of up to 3 degrees without inducing destructive edge stresses, making them ideal for long shafting in textile or agricultural machinery.
How to Evaluate Performance and Reliability
Theoretical specifications must be rigorously validated against standardized performance metrics and projected reliability models. Evaluating these factors ensures that the selected bearing will fulfill its intended lifecycle within the specific, often harsh, industrial environment.
Which ratings, life calculations, and failure modes to review
The universally accepted standard for bearing life calculation is the ISO 281 L10 equation, which predicts the number of revolutions (or hours at a constant speed) that 90% of a group of identical bearings will complete before demonstrating the first signs of metal fatigue. For heavy industrial gearboxes, engineers typically target an L10h life of 50,000 to 100,000 hours.
Advanced calculations incorporate reliability modifiers, material fatigue limits, and the viscosity ratio (κ) to provide a modified rating life (Lnm). Reviewing common failure modes—such as spalling from subsurface fatigue, brinelling from static overload, or smearing from inadequate lubrication—allows engineers to preemptively adjust calculations and select appropriate mechanical countermeasures.
How environment, contamination, temperature, and vibration affec
t service life
Environmental variables frequently compromise theoretical bearing life, making real-world adjustments mandatory. Particulate contamination is a primary catalyst for premature failure; even a 0.002% concentration of water in the lubricant can reduce bearing fatigue life by up to 48%.
Temperature extremes directly affect the kinematic viscosity of the lubricant, potentially causing the elastohydrodynamic film to collapse and leading to destructive metal-to-metal contact. High-vibration environments, such as those found in vibratory screens or aggregate crushers, accelerate cage wear and require specialized, ruggedized brass or machined steel cages to maintain structural integrity under continuous shock loads.
What Sourcing and Quality Checks Reduce Risk
Engineering the perfect bearing is futile if the procured component is substandard, out of tolerance, or counterfeit. Establishing robust sourcing protocols and stringent quality checks is essential to mitigate supply chain risks and ensure long-term operational safety.
How to assess supplier capability and traceability
Assessing supplier capability goes beyond reviewing product catalogs; it requires evaluating their manufacturing consistency, metallurgical controls, and supply chain transparency. Counterfeit bearings cost the global industrial sector over $3 billion annually, posing severe safety hazards and massive financial risks.
Procurement teams must mandate full lot traceability, ensuring that every bearing can be tracked back to the original steel heat. Auditing suppliers for statistical process control (SPC) capabilities and their adherence to strict minimum order quantities (MOQs)—often ranging from 500 to 1,000 units for custom configurations—ensures long-term partnership viability and production stability.
Which standards, documentation, and testing requirements matter
| ABEC Standard | ISO Standard | Max Radial Runout (50mm Bore) | Typical Industrial Application |
|---|---|---|---|
| ABEC 1 | ISO Class 0 | 20 µm | General electric motors, conveyors |
| ABEC 3 | ISO Class 6 | 10 µm | Pumps, standard machine tools |
| ABEC 5 | ISO Class 5 | 5 µm | Precision gearboxes, robotics |
| ABEC 7 | ISO Class 4 | 4 µm | High-speed machine tool spindles |
Compliance with internationally recognized standards is non-negotiable for critical applications. Suppliers must provide documentation such as ISO 9001 or IATF 16949 certifications, along with EN 10204 3.1 material test reports confirming the exact chemical composition of the steel.
Dimensional and running accuracy should be verified against ABMA (ABEC) or ISO tolerance classes. Furthermore, high-stakes aerospace or medical applications may necessitate specific non-destructive testing (NDT), such as ultrasonic inspection for subsurface inclusions or magnetic particle inspection for surface micro-cracks, before the bearings are approved for final assembly.
What Selection Process Works Best
Consolidating engineering analysis and supply chain validation into a repeatable workflow ensures consistent reliability across all plant assets. A structured selection process bridges the critical gap between theoretical mechanical design and practical procurement operations.
How to build a practical selection workflow
A practical selection workflow typically follows a strict five-step methodology. First, engineers map the precise spatial constraints and maximum boundary dimensions. Second, the applied radial, axial, and moment loads are quantified to calculate the required dynamic load rating. Third, the appropriate bearing type is selected based on load directionality and misalignment tolerances.
Fourth, the requisite precision class, internal clearance, and cage material are specified. Finally, the tribological system is defined, dictating the lubricant type, fill volume (often 25% to 35% of free space for high-speed greases), and sealing arrangement. This standardized, sequential approach prevents critical omissions during the specification phase.
When to standardize, upgrade, or customize
Deciding whether to standardize, upgrade, or customize depends entirely on the scale and criticality of the application. Standardizing on a consolidated list of bearing sizes and C3 clearances can reduce facility MRO (Maintenance, Repair, and Operations) inventory costs by 15% to 20%, streamlining procurement.
However, upgrading is warranted for chronic failure points; for example, replacing standard steel bearings with ceramic hybrid variants in VFD-driven electric motors prevents electrical arcing and subsequent fluting damage. Full customization—involving proprietary raceway profiles or specialized anti-corrosion coatings—should be reserved for highly specialized OEM equipment where standard catalog bearings simply cannot meet extreme performance thresholds.
Key Takeaways
- The most important conclusions and rationale for ball bearings
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What is the first step in choosing ball bearings for industrial use?
Start with operating conditions: load, speed, temperature, duty cycle, and contamination level. This defines the right bearing type, clearance, seals, and lubrication before you compare catalog options.
Which ball bearing type suits most industrial machinery?
Deep groove ball bearings fit many motors, conveyors, and general machines because they handle high radial loads, moderate axial loads, and high speeds with simple installation.
When should I choose 2RS seals instead of ZZ shields?
Choose 2RS for dusty, wet, or dirty environments where contamination control matters. Choose ZZ for cleaner, higher-speed applications where lower friction and heat are priorities.
How do I select the right internal clearance for a ball bearing?
Match clearance to temperature and fit. CN works for many standard conditions, while C3 is often better for electric motors or applications with higher heat and tighter interference fits.
