What Are the Main Types of Bearings and How to Choose the Right One for Your Application

Bearings play a crucial role in various applications, enabling smooth movement and reducing friction. Understanding the different types of ball and roller bearings explained helps engineers and technicians select the most suitable option for their needs. A well-informed bearing selection guide can significantly impact equipment reliability. Choosing the right bearings types ensures optimal performance and longevity in machinery. Therefore, knowing why bearing selection matters for equipment reliability is essential for maintaining efficiency and reducing downtime. Additionally, utilizing a bearing selection chart for industrial uses can further aid in making informed decisions, ensuring that the right industrial bearings are chosen for specific applications.

Key Takeaways

• Choosing the right bearing type boosts machinery efficiency and reliability.
• Regular maintenance and timely replacements are key to preventing bearing failures.
• Understanding load characteristics and speed requirements is crucial for proper bearing selection.
• Environmental conditions and lubrication needs significantly impact bearing performance.
• Investing in quality bearings can reduce long-term costs and enhance equipment lifespan.

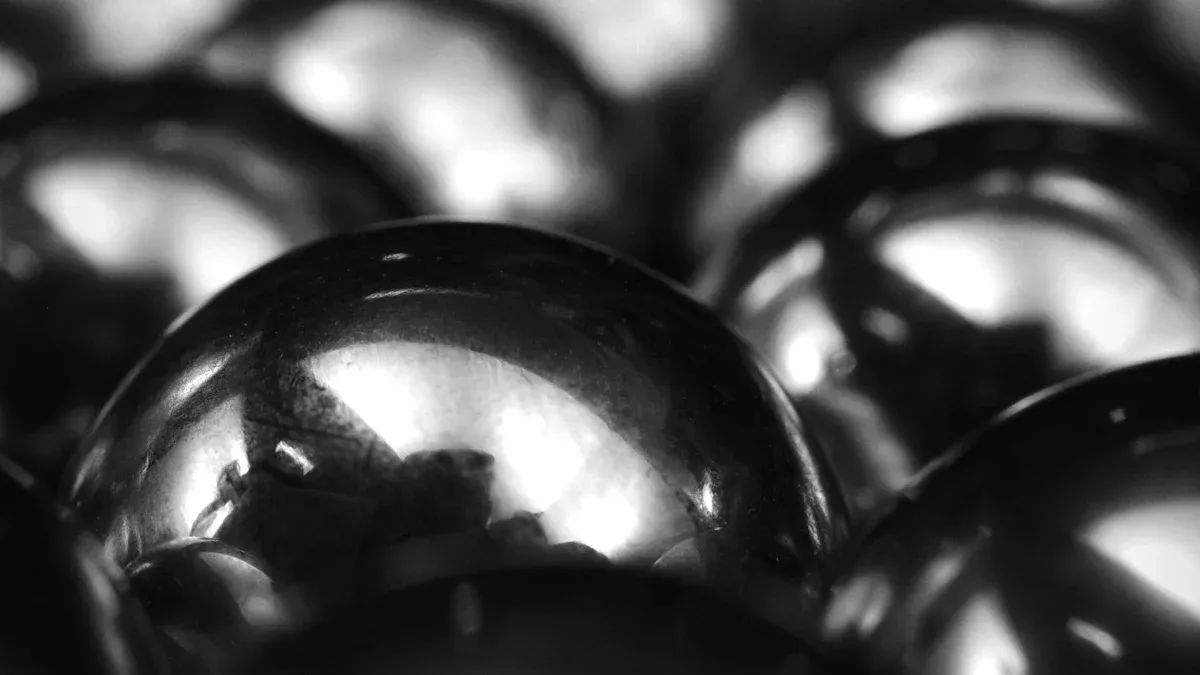

Bearings Types

Ball Bearings

Ball bearings are among the most common types of bearings used in various applications. They consist of a set of balls that reduce friction between moving parts. This design allows for smooth rotation and efficient load distribution. Ball bearings excel in applications requiring high speeds and low friction. They are widely utilized in transportation, recreation, and industrial machinery.

The versatility of ball bearings makes them suitable for a range of environments. They can handle both radial and axial loads, making them ideal for applications where space is limited.

Roller Bearings

Roller bearings utilize cylindrical rollers instead of balls to support loads. This design allows them to carry heavier loads compared to ball bearings. Roller bearings are particularly effective in high-load applications, such as power generation and heavy machinery.

• Cylindrical Roller Bearings: Best for pure radial loads and high-speed operations, ideal for heavy industrial applications.
• Tapered Roller Bearings: Designed for combined radial and thrust loads, commonly used in automotive gear drives and heavy machinery.
• Spherical Roller Bearings: Offer self-aligning properties, suitable for applications with misalignment challenges and heavy loads, such as mining equipment and steel mills.

Roller bearings perform exceptionally well in high-speed applications, especially in electrified vehicle powertrains. They require elastohydrodynamic lubrication (EHL) to maintain performance at elevated speeds. This lubrication ensures that the lubricant film thickness increases, which is crucial for optimal operation.

Thrust Bearings

Thrust bearings are designed to handle axial loads, which act parallel to the shaft. They are essential in applications where components experience significant axial forces. Proper lubrication is critical for thrust bearings to function effectively. Inadequate lubrication can lead to wear and failure.

Common failure modes for thrust bearings include wear, fatigue, and corrosion. Regular inspections and maintenance can help mitigate these issues. Users should ensure that lubrication conditions remain optimal to prevent significant failures.

Magnetic Bearings

Magnetic bearings represent a cutting-edge technology that utilizes electromagnetic fields to levitate and stabilize a rotating shaft. This innovative design allows for operation without physical contact, effectively eliminating friction and wear. As a result, magnetic bearings offer maintenance-free operation, making them an attractive choice for various high-performance applications.

There are two primary types of magnetic bearings:

• Active Magnetic Bearings (AMB): These bearings employ electromagnets and sensors to make real-time adjustments. They are ideal for high-speed and precision applications, ensuring optimal performance.
• Passive Magnetic Bearings: These rely on permanent magnets, providing a simpler and more reliable solution, though they may lack the precision of their active counterparts.

Magnetic bearings find extensive use in industries where high speeds, precision, and minimal maintenance are critical. Common applications include turbomachinery, energy systems, and medical equipment. Their ability to operate without lubrication makes them particularly valuable in environments where contamination must be avoided.

Fluid Bearings

Fluid bearings utilize a thin film of liquid or gas to support a load, allowing for smooth motion with minimal friction. This design significantly reduces wear and extends the lifespan of the bearing. Fluid bearings can be classified into two main types: hydrodynamic and hydrostatic.

• Hydrodynamic Bearings: These rely on the motion of the shaft to create a pressure buildup in the fluid, which supports the load. They are commonly used in high-speed applications, such as turbines and generators.
• Hydrostatic Bearings: These use an external pump to supply pressurized fluid to the bearing surfaces, providing a constant load support. They are suitable for applications requiring high precision and stability.

Fluid bearings excel in applications where noise reduction and vibration control are essential. They are often found in high-performance machinery, such as precision grinding equipment and aerospace components.

Composite Bearings

Composite bearings are engineered from advanced materials that combine the benefits of traditional metal bearings with enhanced properties. These bearings exhibit high corrosion resistance, making them ideal for use in harsh environments.

The unique composition of composite bearings allows them to perform exceptionally well in corrosive environments compared to metal bearings. They require less maintenance and provide superior performance, making them a preferred choice in industries such as marine, chemical processing, and food production.

Applications of Bearings

Automotive Industry

Bearings play a vital role in the automotive industry, ensuring smooth operation and reliability. Common types of bearings used in vehicles include:

• Ball Bearings
• Wheel Bearings
• Water Pump Bearings
• Air Condition Bearings
• Clutch Release Bearings
• Motor Bearings
• Agricultural Bearings
• Textile Bearings
• Ceramic Bearings
• Stainless Steel Bearings
• Oil-free self-lubricating Bearings

These bearings help reduce friction and wear, enhancing vehicle performance. Proper selection and maintenance of bearings are crucial, as improper lubrication can lead to significant failures. Statistically, up to 70% of bearing failures stem from inadequate lubrication, resulting in costly downtimes.

Aerospace Applications

In the aerospace sector, bearings must withstand extreme conditions, including high speeds and varying temperatures. They ensure the functionality of critical components such as engines, landing gear, and control systems.

Aerospace bearings often utilize advanced materials and designs to enhance performance and reliability. For instance, ceramic bearings offer lightweight and high-strength properties, making them ideal for aircraft applications. The precision of these bearings directly impacts safety and efficiency, emphasizing the importance of selecting the right type for each application.

Industrial Machinery

Industrial machinery relies heavily on bearings for optimal performance. Common failures in this sector include:

• Improper Lubrication: Inadequate viscosity at operating temperature can lead to failure.
• Cage Damage: Caused by vibration, excessive speed, wear, or blockage.
• Contamination & Corrosion: Dirt, sand, water, and chemicals can damage bearings.
• Electric Arcing: High temperatures from electric current passing through the bearing.
• Poor Fitting: Improper mounting can lead to operational issues.
• Fatigue: Fractures in running surfaces lead to material detachment.
• Brinelling: Permanent indentation marks from excessive loads.
• Misalignment: Causes excessive vibration and loads.

The selection of low-friction bearings can significantly reduce energy consumption, lowering operational costs and enhancing productivity. Proper maintenance and alignment are essential to prevent premature failures, ensuring machinery operates efficiently and reliably.

Consumer Electronics

Bearings play a vital role in consumer electronics, enhancing the durability and performance of devices. They minimize friction and support loads, which is essential for efficient operation. Proper bearing selection can significantly impact the longevity of components such as electric motors and cooling fans.

Key considerations for bearings in consumer electronics include:

• Radial Space Constraints: Compact bearings like needle roller bearings are ideal for limited radial space.
• Vibration and Noise Levels: Deep groove ball bearings are recommended for applications with strict vibration and noise requirements.
• Environmental Conditions: Sealed or corrosion-resistant bearings are necessary for harsh environments.
• Lubrication and Maintenance: Sealed or self-lubricating bearings are preferred for challenging maintenance access.
• Installation and Alignment: Self-aligning ball bearings accommodate minor misalignments, while spherical roller bearings handle larger misalignments.

Selecting the right fan type is crucial for longevity and efficiency. A decrease in fan speed can significantly reduce airflow, impacting performance. Effective temperature regulation through proper bearing selection can lower maintenance costs. High-quality bearings reduce friction, leading to lower energy consumption and heat generation, ultimately extending the lifespan of devices.

Medical Equipment

In the medical field, bearings are critical for ensuring the reliability and safety of equipment. They support various components in devices such as MRI machines, surgical robots, and diagnostic tools. The performance of these bearings directly affects patient safety and equipment reliability.

Key factors to consider in medical equipment include:

• Regular Maintenance: This helps catch safety hazards before they pose risks to patients.
• Timely Replacement: Replacing bearings prevents cascading failures that could compromise equipment functionality.
• Emergency Readiness: Equipment failures during emergencies can endanger lives, emphasizing the need for reliable safety systems.

Investing in routine care can prevent costly equipment overhauls later. Regular calibration and preventive service of biomedical equipment maintain accuracy and reliability beyond warranty periods. Addressing issues early ensures that components do not damage each other, allowing systems to reach their full potential lifespan.

Factors to Consider When Choosing Bearings

Load Characteristics

When selecting bearings, understanding load characteristics is crucial. Different types of loads affect the choice of bearings significantly. The following table summarizes the key load types and their implications for bearing selection:

Engineers must consider the type of load, its magnitude, and the operating conditions. For instance, the type of load determines the bearing type needed. The magnitude of the load influences the choice of bearing material and design. Additionally, environmental conditions and maintenance requirements play a crucial role in ensuring the bearing’s longevity and performance.

To calculate bearing loads accurately, engineers typically follow these steps:

1. Determine external forces acting on the bearing.
2. Convert these external forces into forces acting at the bearing centers.
3. Consider the type of bearing and its load distribution characteristics.
4. Account for reaction forces if the design is indeterminate.
5. Use empirical coefficients and engineering data for load calculations.

Engineers utilize empirical coefficients from standard bearing tables to assist in load calculations. Manufacturers like INA, Schaeffler, RBC, and SKF provide extensive data for engineers to reference.

Speed Requirements

Speed requirements are another critical factor in bearing selection. Bearings must operate efficiently at the speeds specific to their applications. High-speed applications often require specialized bearings designed to minimize friction and heat generation.

For example, ball bearings are ideal for high-speed applications due to their low friction characteristics. Conversely, roller bearings may be more suitable for applications with lower speeds but higher loads.

When assessing speed requirements, engineers should consider the following:

• Operating Speed: The maximum speed at which the bearing will operate.
• Dynamic Load Rating: The bearing’s ability to withstand loads at high speeds.
• Lubrication: Proper lubrication is essential to reduce friction and heat at elevated speeds.

The equivalent dynamic bearing load can be calculated using the formula: P = XFr + YFa, where P is the equivalent dynamic bearing load, Fr is the actual radial bearing load, and Fa is the actual axial bearing load. This calculation helps ensure that the selected bearing can handle the expected speeds without failure.

Environmental Conditions

Environmental conditions significantly influence bearing performance. Factors such as temperature, humidity, and exposure to contaminants can affect the bearing’s lifespan and functionality.

Temperature plays a vital role in bearing operation. Elevated temperatures can lead to the degradation of lubricants, which are essential for reducing friction and heat. Optimal operating temperatures for bearings in electric motors typically range from 160°F to 230°F (71°C to 110°C). When bearings operate outside this range, adjustments such as preloading may be necessary to prevent excessive play.

Humidity and exposure to contaminants can also impact bearing performance. Bearings in humid environments may require corrosion-resistant materials or seals to protect against moisture. Similarly, bearings exposed to dust or chemicals need adequate sealing to prevent contamination.

Lubrication Needs

Effective lubrication is crucial for the performance and longevity of bearings. Proper lubrication reduces friction, minimizes wear, and prevents overheating. It also enhances equipment uptime, which is vital for operational efficiency.

When selecting a lubrication method, consider the following factors:

1. Maximum Speed: Determine the highest speed at which the bearing will operate.
2. Speed Variability: Assess whether the speed will remain constant or fluctuate.
3. Start-Stop Frequency: Evaluate how often the equipment will undergo start-stop cycles.

Different bearing types require specific lubrication methods to optimize their performance. The table below summarizes recommended lubrication methods based on bearing type and speed considerations:

Using the correct lubrication method significantly impacts bearing longevity. For instance, oil baths work well in low-speed applications, while high-speed bearings benefit from grease or oil misting.

Tip: Regularly check lubrication levels and conditions to ensure optimal performance. Inadequate lubrication can lead to premature bearing failure, resulting in costly downtime and repairs.

Cost Considerations

Cost is a critical factor when selecting bearings for any application. While it may be tempting to choose the least expensive option, this approach can lead to higher long-term costs due to increased maintenance and replacement needs.

When evaluating costs, consider the following aspects:

• Initial Purchase Price: The upfront cost of the bearing.
• Maintenance Costs: Ongoing expenses related to lubrication, inspections, and repairs.
• Replacement Costs: The potential costs associated with bearing failure and the need for replacements.

Investing in high-quality bearings may incur a higher initial cost but can lead to significant savings over time. Quality bearings often require less maintenance and have longer lifespans, reducing the frequency of replacements.

Best Practices for Bearing Maintenance

Regular Inspections

Regular inspections are essential for maintaining bearing performance and longevity. Technicians should establish a routine inspection schedule to identify potential issues before they escalate. Key aspects to check during inspections include:

• Visual Examination: Look for signs of wear, corrosion, or misalignment.
• Noise Assessment: Listen for unusual sounds that may indicate problems.
• Temperature Monitoring: Measure bearing temperatures to detect overheating.

Implementing a checklist can streamline the inspection process and ensure no critical areas are overlooked.

Proper Lubrication

Proper lubrication significantly enhances bearing life and efficiency. Lubricants reduce friction and wear, preventing overheating. To achieve optimal lubrication, consider the following:

• Choose the Right Lubricant: Select a lubricant that matches the bearing type and operating conditions.
• Follow Manufacturer Guidelines: Adhere to recommended lubrication intervals and quantities.
• Monitor Lubricant Condition: Regularly check for contamination or degradation of the lubricant.

Tip: Use automatic lubrication systems where feasible. These systems can maintain consistent lubrication levels, reducing the risk of human error.

Monitoring Operating Conditions

Monitoring operating conditions is crucial for ensuring bearings function effectively. Key parameters to track include:

• Load Levels: Ensure loads remain within specified limits to prevent premature failure.
• Speed Variations: Monitor speed fluctuations that could impact bearing performance.
• Environmental Factors: Assess temperature, humidity, and exposure to contaminants.

Utilizing sensors and data logging systems can provide real-time insights into bearing performance. This proactive approach allows for timely interventions, minimizing downtime and extending bearing life.

Replacement Guidelines

Replacing bearings at the right time is crucial for maintaining equipment performance and preventing costly failures. Here are key guidelines to follow when considering bearing replacement:

1. Monitor Performance: Regularly assess bearing performance. Look for signs of wear, unusual noises, or increased vibration. These indicators often signal that replacement is necessary.
2. Check Lubrication: Inadequate lubrication can lead to premature bearing failure. If lubrication issues persist despite regular maintenance, consider replacing the bearing.
3. Evaluate Load Conditions: Ensure that the bearing operates within its specified load limits. If the load exceeds the bearing’s capacity, replacement may be required to avoid damage.
4. Inspect for Contamination: Contaminants can significantly shorten bearing life. If contamination occurs, replace the bearing to maintain optimal performance.
5. Follow Manufacturer Recommendations: Always adhere to the manufacturer’s guidelines regarding replacement intervals and procedures. This ensures that the replacement bearing meets the necessary specifications.

Tip: Keep a record of bearing replacements. Documenting replacement dates and conditions helps track performance trends and informs future maintenance decisions.

By following these guidelines, technicians can ensure that bearings are replaced timely, enhancing equipment reliability and extending overall machinery life. Proper replacement practices contribute to smoother operations and reduced downtime.

Understanding the various types of bearings and their selection criteria is essential for optimal machinery performance. Proper bearing choice directly influences equipment reliability and longevity.

• Key Takeaways:
  • Selecting the right bearing type enhances efficiency.
  • Regular maintenance and timely replacements prevent failures.

Investing time in understanding bearings pays off in reduced downtime and increased productivity.

Remember, informed decisions lead to better outcomes in any application.

FAQ

What is the primary function of bearings?

Bearings reduce friction between moving parts, enabling smooth rotation and efficient load distribution. They support various applications, from automotive to industrial machinery, enhancing performance and longevity.

How do I know which bearing type to choose?

Consider load characteristics, speed requirements, environmental conditions, lubrication needs, and cost. Each factor influences the bearing’s performance and suitability for specific applications.

What maintenance practices extend bearing life?

Regular inspections, proper lubrication, monitoring operating conditions, and timely replacements are essential. These practices help prevent premature failures and ensure optimal performance.

Can bearings operate in extreme temperatures?

Yes, many bearings are designed to withstand extreme temperatures. Selecting the appropriate materials and lubrication can enhance performance in high or low-temperature environments.

What are the signs of bearing failure?

Common signs include unusual noises, increased vibration, overheating, and visible wear. Addressing these issues promptly can prevent further damage and costly downtime.
