Ball Bearing Selection Guide for Load, Speed, and Service Life

Introduction

Choosing a ball bearing is a tradeoff between how much load it must carry, how fast it must rotate, and how long it needs to last before fatigue becomes a risk. A sound selection starts with the real operating profile: radial and axial loads, duty cycle, speed range, temperature, lubrication, and contamination exposure. From there, key ratings such as dynamic load capacity, equivalent load, and calculated L10 life help define whether a bearing will meet reliability targets without being oversized. This guide explains the core selection factors, shows how load and speed limits interact, and prepares you to evaluate service life with fewer design assumptions.

Why Ball Bearing Selection Determines Load Capacity and Speed Limits

The specification of a ball bearing dictates the fundamental operational boundaries of rotating equipment. Engineers must balance load capacity, which defines the maximum forces the bearing can withstand without permanent deformation, against speed limits, which dictate the maximum rotational velocity before thermal breakdown occurs. An optimal selection ensures the mechanical system achieves its targeted mean time between failures (MTBF) while avoiding over-engineering that unnecessarily inflates manufacturing costs.

How to Frame Bearing Selection Basics

Establishing a baseline for ball bearing selection requires calculating the L10 service life, defined by the ISO 281 standard as the number of revolutions that 90% of a given group of identical bearings will complete or exceed before the first evidence of metal fatigue develops. The fundamental equation, L10 = (C/P)³ × 1,000,000 revolutions, relies on the basic dynamic load rating (C) and the equivalent dynamic bearing load (P). For continuous industrial applications, engineers typically target an L10 life of 20,000 to 40,000 hours, whereas intermittent duty cycles may only require 4,000 to 8,000 hours. Accurate load profiling—separating radial and axial forces—is paramount to determining the correct P value.

Which Operating Conditions Cause Premature Failure

Deviating from specified operating conditions rapidly accelerates bearing degradation. Industry data indicates that approximately 54% of premature ball bearing failures stem from improper lubrication, whether through starvation, over-lubrication, or incorrect viscosity grades. An additional 16% of failures are attributed to improper mounting practices, such as excessive interference fits that eliminate internal clearance. When a bearing operates beyond its thermal equilibrium—often exceeding 80°C (176°F) for standard grease—the lubricant film thickness drops below the surface roughness of the raceway, leading to metal-to-metal contact, micro-spalling, and catastrophic thermal runaway within a matter of hours. Vibration monitoring can track this degradation, with RMS velocity readings exceeding 0.15 in/s typically indicating the onset of severe mechanical wear.

Which Ball Bearing Specifications Matter Most

Evaluating ball bearing specifications requires a rigorous analysis of dynamic and static ratings, internal geometry, and material thresholds. These parameters form the core of the bearing’s datasheet and dictate how it will respond to complex stress states during operation.

How Dynamic and Static Load Ratings Affect Selection

The basic dynamic load rating (C) represents the constant load under which a bearing will achieve an L10 life of one million revolutions. In contrast, the basic static load rating (C0) is the maximum applied load that results in a permanent plastic deformation of the rolling element and raceway contact point equal to 0.0001 times the rolling element diameter. Exceeding the C0 threshold, even instantaneously during a shock load, causes brinelling—indentations in the raceway that generate severe vibration and noise during subsequent rotation. For applications subject to heavy vibration or impact, engineers must apply a static safety factor (s0 = C0/P0), strictly maintaining s0 > 1.5 for standard industrial gearboxes and s0 > 3.0 for high-shock applications like industrial crushers.

How Speed, Lubrication, Clearance, and Preload Influence Performance

Rotational speed capabilities are largely defined by the Ndm factor (mean bearing diameter in millimeters multiplied by speed in RPM). Standard deep groove ball bearings using grease lubrication typically support Ndm values up to 500,000. Transitioning to oil-air or oil-mist lubrication can elevate this limit beyond 1,500,000 Ndm, though at a significant system cost. Furthermore, internal clearance—categorized from C2 (tight) to C5 (loose)—must be matched to operating temperatures. A standard CN clearance may suffice for room-temperature operations, but a C3 or C4 clearance is mandatory when the inner ring operates at a significantly higher temperature than the outer ring, compensating for the resulting differential thermal expansion. Preloading, achieved via springs or rigid locknuts, is used to eliminate radial play entirely, increasing system rigidity but simultaneously elevating friction and heat generation.

How Bearing Types Compare for Different Applications

Selecting the correct geometry depends entirely on the direction and magnitude of the applied forces.

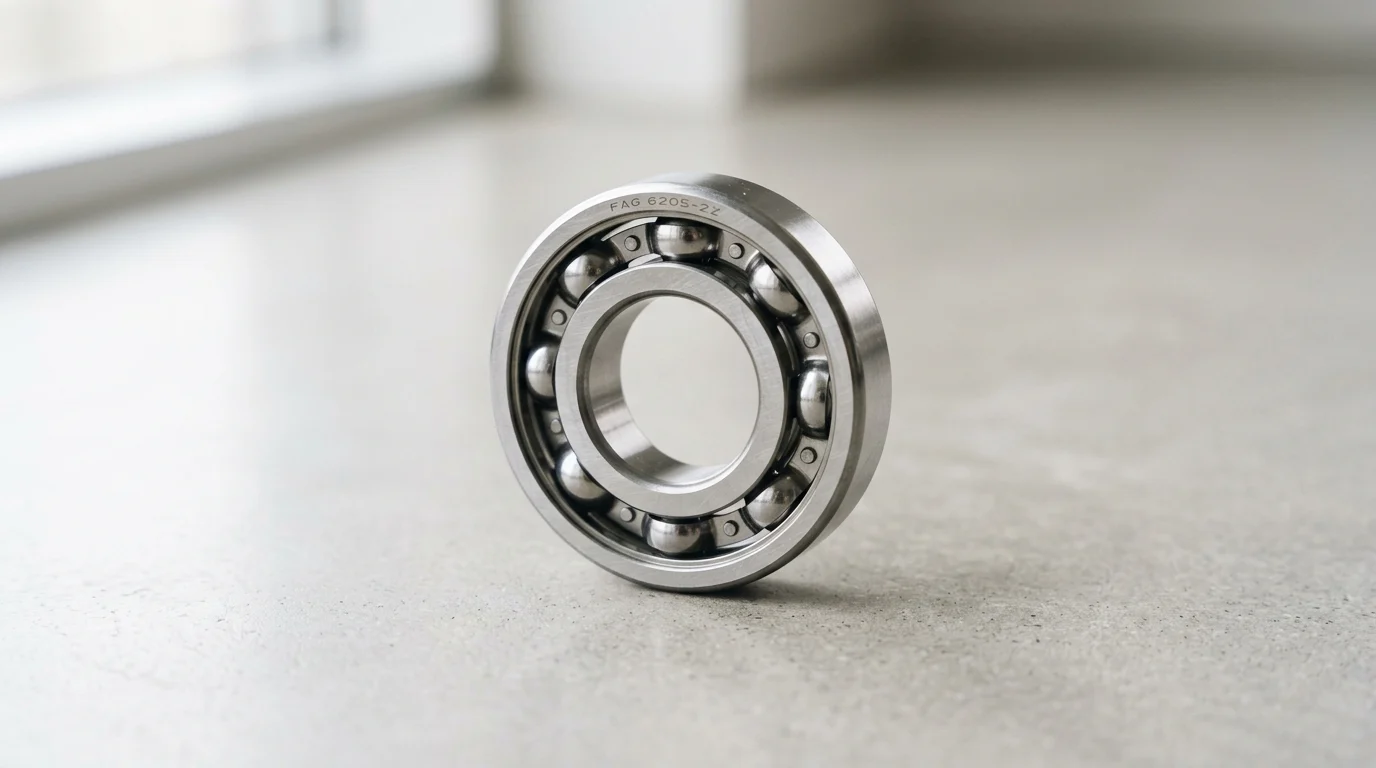

Deep groove ball bearings remain the industry standard for versatile, high-speed operation where radial loads dominate. Angular contact bearings, featuring contact angles typically ranging from 15° to 40°, are deployed in pairs to handle high axial loads and provide moment rigidity, which is essential for machine tool spindles. Self-aligning variants possess a spherical outer raceway, sacrificing ultimate load capacity to accommodate shaft deflections up to 3 degrees without inducing edge loading on the rolling elements.

How to Match a Ball Bearing to Application Duty

Translating theoretical specifications into a functional mechanical design requires a comprehensive review of the application’s duty cycle. Engineers must synthesize load profiles, environmental extremes, and budgetary constraints to specify a bearing that delivers optimal reliability.

Which Application Inputs to Gather First

The specification process begins with an exhaustive collection of mechanical inputs: shaft diameter, housing constraints, maximum rotational speeds, and the duty cycle’s load spectrum. Engineers must calculate the equivalent dynamic bearing load using the formula P = X(Fr) + Y(Fa), where Fr and Fa are radial and axial loads, and X and Y are geometry-specific factors. If the application involves variable loads, a cubic mean load must be calculated to accurately reflect the fluctuating stress on the raceways. Additionally, engineers must define the required reliability factor. While L10 life assumes 90% reliability, mission-critical applications may require an L1 life (99% reliability), which uses an a1 modifier of 0.21, effectively reducing the calculated service life by nearly 80%.

How Environment and Temperature Affect Selection

Environmental variables dictate the material composition and sealing arrangements of the bearing. Standard SAE 52100 bearing steel undergoes metallurgical transformation and dimensional instability when exposed to continuous operating temperatures exceeding 120°C (250°F). For high-heat environments, specifiers must mandate heat-stabilized rings (designated S0 through S4), which can withstand up to 350°C (660°F) but suffer a 20% to 40% reduction in dynamic load capacity. Contamination control is equally critical; the ingress of particulate matter as small as 5 microns can bridge the elastohydrodynamic lubrication film. Consequently, engineers must select appropriate sealing technologies, choosing between non-contact metallic shields (ZZ) for high-speed, low-friction needs, or heavy-duty contact seals (2RS) capable of excluding heavy dust and moisture at the expense of a 15% reduction in maximum speed capability.

What Selection Process Balances Performance and Cost

Balancing peak performance against procurement budgets requires evaluating the total cost of ownership rather than the initial purchase price. For instance, substituting standard steel ball bearings with ceramic hybrid variants (silicon nitride balls with steel rings) can increase the initial unit cost by a factor of 3 to 5. However, because ceramic balls are 60% lighter and generate significantly less centrifugal force, they can extend lubricant life by up to 40% in high-speed applications, such as electric vehicle traction motors operating at 18,000 RPM. If the mechanical system’s warranty costs or downtime penalties exceed $10,000 per hour, the premium for advanced materials, specialized coatings, or ultra-precision tolerances is rapidly justified.

What Quality, Sourcing, and Compliance Factors Matter

Procurement of ball bearings extends beyond dimensional specifications; it requires stringent evaluation of manufacturing quality, metallurgical integrity, and supplier reliability. The global bearing market features a vast spectrum of capabilities, requiring rigorous supplier qualification to prevent catastrophic system failures.

How to Compare Material Quality, Heat Treatment, and Precision

Dimensional precision and running accuracy are governed by international tolerance classes, primarily the ABEC scale (Annular Bearing Engineering Committee) or the equivalent ISO 492 standard. Standard industrial electric motors typically use ABEC 1 or ABEC 3 (ISO P0 or P6) bearings. However, precision machine tools require ABEC 7 or ABEC 9 (ISO P4 or P2) grades. An ABEC 7 bearing, for example, demands an inner ring radial runout of less than 0.0001 inches (2.5 micrometers), ensuring minimal vibration at extreme speeds. Beyond dimensional tolerances, metallurgical quality is paramount. Bearings must be manufactured from vacuum-degassed steel to minimize non-metallic inclusions. A martensitic heat treatment process should yield a uniform hardness of 58 to 62 HRC, ensuring maximum fatigue resistance.

Which Standards and Documentation Matter

Compliance with international manufacturing and environmental standards serves as a baseline for supplier qualification. Suppliers must hold ISO 9001:2015 certification for general industrial applications, while aerospace components require AS9100 accreditation. Furthermore, engineers must request Material Test Reports (MTRs) to verify the chemical composition and heat treatment batch records of the steel. In global supply chains, compliance with RoHS (Restriction of Hazardous Substances) and REACH directives is mandatory, particularly concerning the chemical composition of rust-preventative oils, cage materials, and synthetic greases used in the bearing’s final assembly.

How Supplier Tiers Compare

The sourcing landscape is stratified into distinct supplier tiers, each offering different cost, quality, and logistical profiles.

Tier 1 manufacturers invest heavily in proprietary internal geometries, advanced honing techniques, and zero-defect quality control, commanding a 40% to 100% price premium. Tier 2 suppliers offer a balanced value proposition for standard NEMA electric motors and gearboxes, provided they undergo strict incoming quality control audits. Relying on Tier 3 suppliers for critical industrial machinery often results in a false economy, where initial unit savings of 20% to 30% are obliterated by elevated warranty claims and premature field failures.

What Decision Framework Works Best for Final Selection

Executing the final ball bearing selection requires a structured decision-making framework that transitions from theoretical engineering models to practical procurement and validation phases. This ensures the chosen component meets both technical and commercial mandates.

How to Finalize Specifications and Supplier Choice

Finalizing the specification involves locking in the complete bearing nomenclature, which details the bore size, series, cage material, internal clearance, sealing arrangement, and lubricant fill rate (typically 25% to 35% of free internal space). Once the specification is frozen, engineers must conduct prototype validation testing. A standard protocol involves a 500-hour accelerated life test under maximum continuous load and maximum operating temperature, followed by a teardown analysis to inspect the raceways for early signs of micro-spalling or lubricant degradation. Concurrently, procurement teams must evaluate the Total Cost of Ownership (TCO), factoring in the unit price, shipping logistics, inventory holding costs, and the projected MTBF. Only when both the physical prototype passes the accelerated validation and the supplier meets the TCO and defect rate thresholds (such as strict adherence to < 50 PPM defect limits) should the bearing be approved for full-scale serial production.

Key Takeaways

• The most important conclusions and rationale for ball bearing
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

How do I choose between deep groove and angular contact ball bearings?

Use deep groove bearings for mainly radial loads with moderate axial load and high speed. Choose angular contact bearings when axial load is significant or combined loads need higher rigidity.

What service life should I target for an industrial ball bearing?

For continuous industrial duty, target about 20,000–40,000 operating hours. For intermittent equipment, 4,000–8,000 hours may be sufficient if load and speed are well controlled.

When should I select C3 clearance instead of CN?

Select C3 when the inner ring runs hotter than the outer ring, such as motors or high-speed units. CN is usually suitable for normal temperature, standard fit applications.

How can I avoid premature ball bearing failure?

Use the correct lubricant and viscosity, avoid over-greasing, install with proper fits, and keep operating temperature below typical grease limits. Check vibration early if noise or heat rises.

Can DEMY Bearings help with OEM or bulk ball bearing selection?

Yes. DEMY Bearings supplies catalog-based selection support for OEMs, distributors, and industrial buyers, with a wide range of precision ball bearings and technical information through its e-catalog and FAQ resources.
